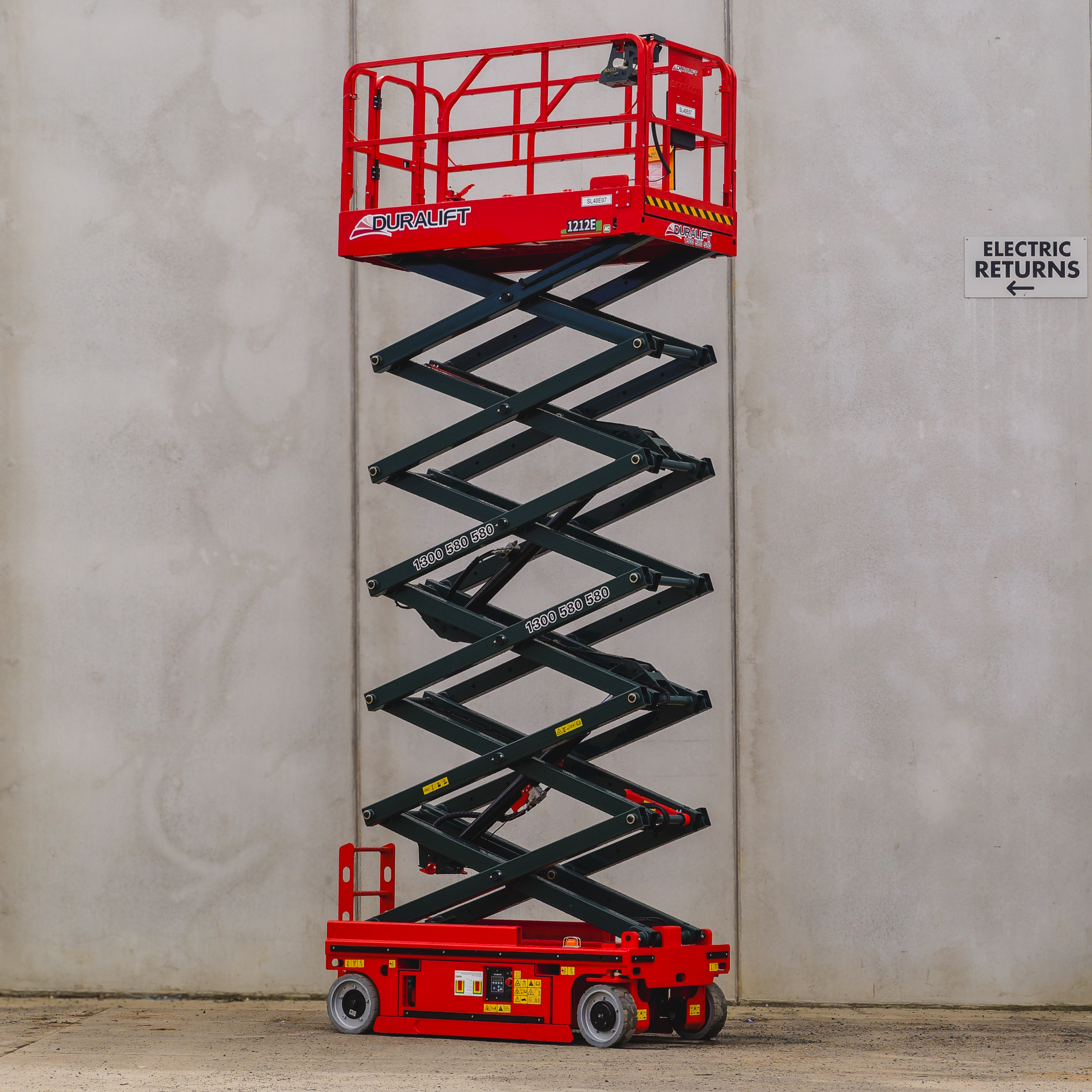

40FT NARROW ELECTRIC SCISSOR LIFT
VIEW PRODUCT SPECS
- 13.70 – 13.80m Working Height
- 11.70 – 11.80m Platform Height
- 1.19 – 1.2m wide
- For use on level ground
VIEW THE DURALIFT 40FT NARROW ELECTRIC SCISSOR LIFT VIDEO HERE
|
KEY MEASUREMENTS |
|
|
Working height |
13.70 - 13.80 m |
|
Platform height |
11.70 - 11.80 m |
|
Platform height stowed / rails folded |
2.54 / 1.96 - 2.08 m |
|
Platform length – outside / extended |
2.49 / 3.38 m |
|
Width |
1.19 - 1.2 m |
|
PRODUCTIVITY |
|
|
Lift capacity |
350 kg |
|
Gradeability |
23% (12.95°) - 25% (14°) |
|
MACHINE WEIGHT |
3,168 - 3,222 kg |
Multiple brands and model varieties available.
* Specifications are indicative only and may vary depending on model.- Overall machine width of just 1.2m*
- Non-marking tyres
- Charge with standard AC power point
- Ideal for working indoors and level ground
- Extendable deck
A scissor lift is a type of platform that can usually only move vertically. The mechanism in this type of elevated work platform (EWP) is associated with folding supports in a criss-cross “X” pattern that resembles a scissor-like action.
Out of many types of access equipment, scissor lifts have proven to be the most popular. Many models of scissor lifts support a wide range of conditions, including electric for mostly indoor and solid ground to diesel rough terrain scissor lifts ideal for the outdoors.
Electric Scissor Lifts are optimised for indoors or flat level ground surfaces such as slab concrete outdoor areas. Being electric these scissor lifts have zero fuel emissions and minimal noise pollution. Electric scissor lifts can be charged overnight using a standard 240V power source.
