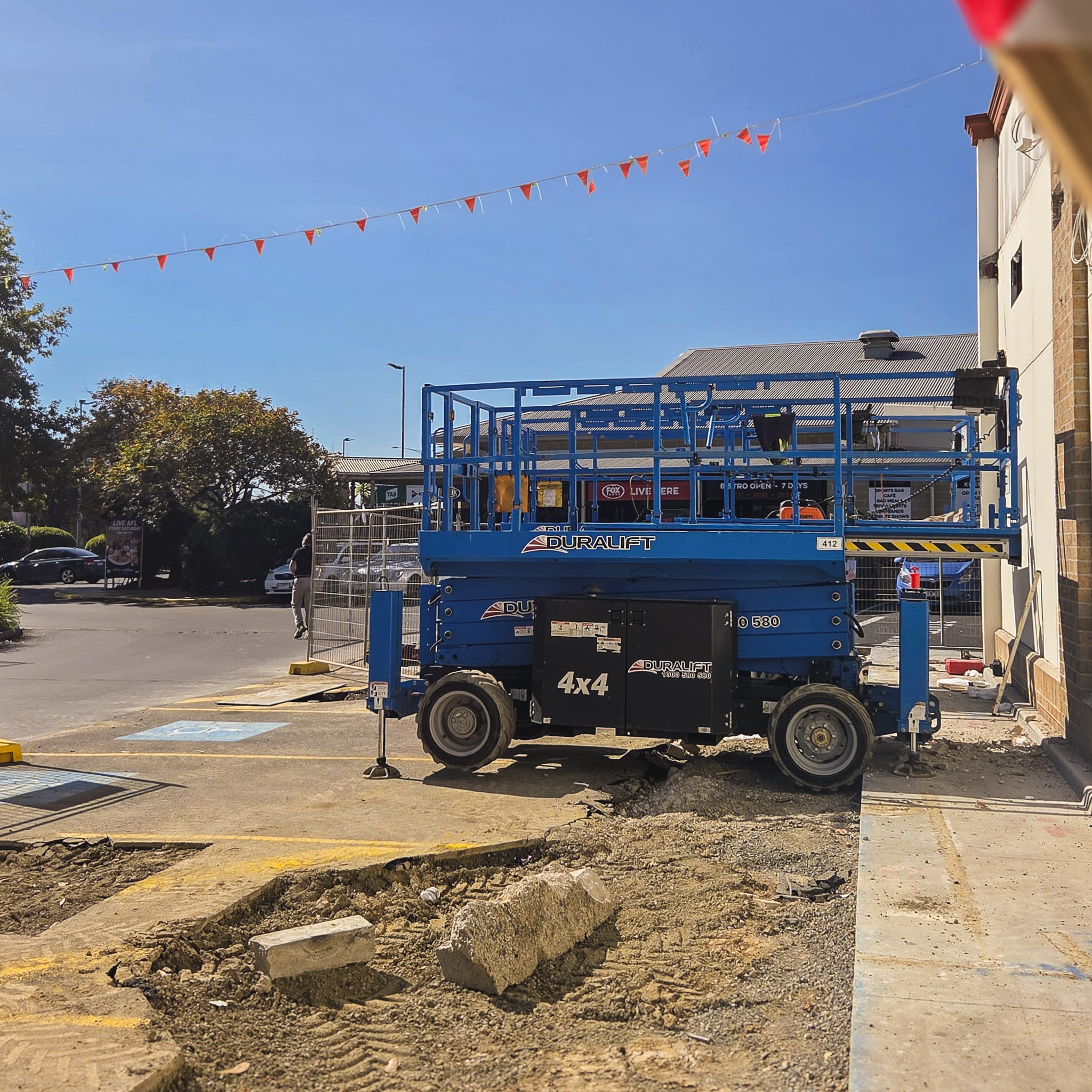

26FT DIESEL SCISSOR LIFT

VIEW PRODUCT SPECS
  • 9.92m Working Height
  • 7.92m Platform Height
  • 173cm wide
  • For use on uneven ground
Suitable for:

all outdoor work on rough uneven outdoor terrain, such as building & construction, roofing and plumbing type projects as well as anywhere you need to work at height.

    QUICK QUOTE

    Hire Duration
    Daily RateWeekly RateBoth



    KEY MEASUREMENTS

    Working height max

    9.92 m

    Platform height max

    7.92 m

    Platform height – stowed

    1.50 m

    Length – stowed with outriggers

    3.38 m

    Platform length – outside / extended

     2.51 m / 3.96 m

    Width

    1.73 m

    PRODUCTIVITY

    Lift capacity

    567 kg

    Gradeability

    35% (19.29°)

    Maximum outrigger leveling

    6.6° front to back , 10.6° side to side

    MACHINE WEIGHT

    3,415 kg

    • Working height 9.92 m
    • 567kg lift capacity
    • Outriggers for stability on uneven ground (can elevate on slopes and inclines up to 6.6° front to back , 10.6° side to side)
    • 35% Gradeability (for moving across inclines)
    • Rough terrain 4WD
    • Fire extinguisher
    • Ideal for outdoor use
    A scissor lift is a type of platform that can usually only move vertically. The mechanism in this type of elevated work platform (EWP) is associated with folding supports in a criss-cross “X” pattern that resembles a scissor-like action. Out of many types of access equipment, scissor lifts have proven to be the most popular. Many models of scissor lifts support a wide range of conditions, including electric for mostly indoor and solid ground to diesel rough terrain scissor lifts ideal for the outdoors. Diesel Rough Terrain Scissor Lifts are optimised for moving and working off-road on uneven outdoor terrain.
    26FT DIESEL SCISSOR LIFTDOWNLOAD
