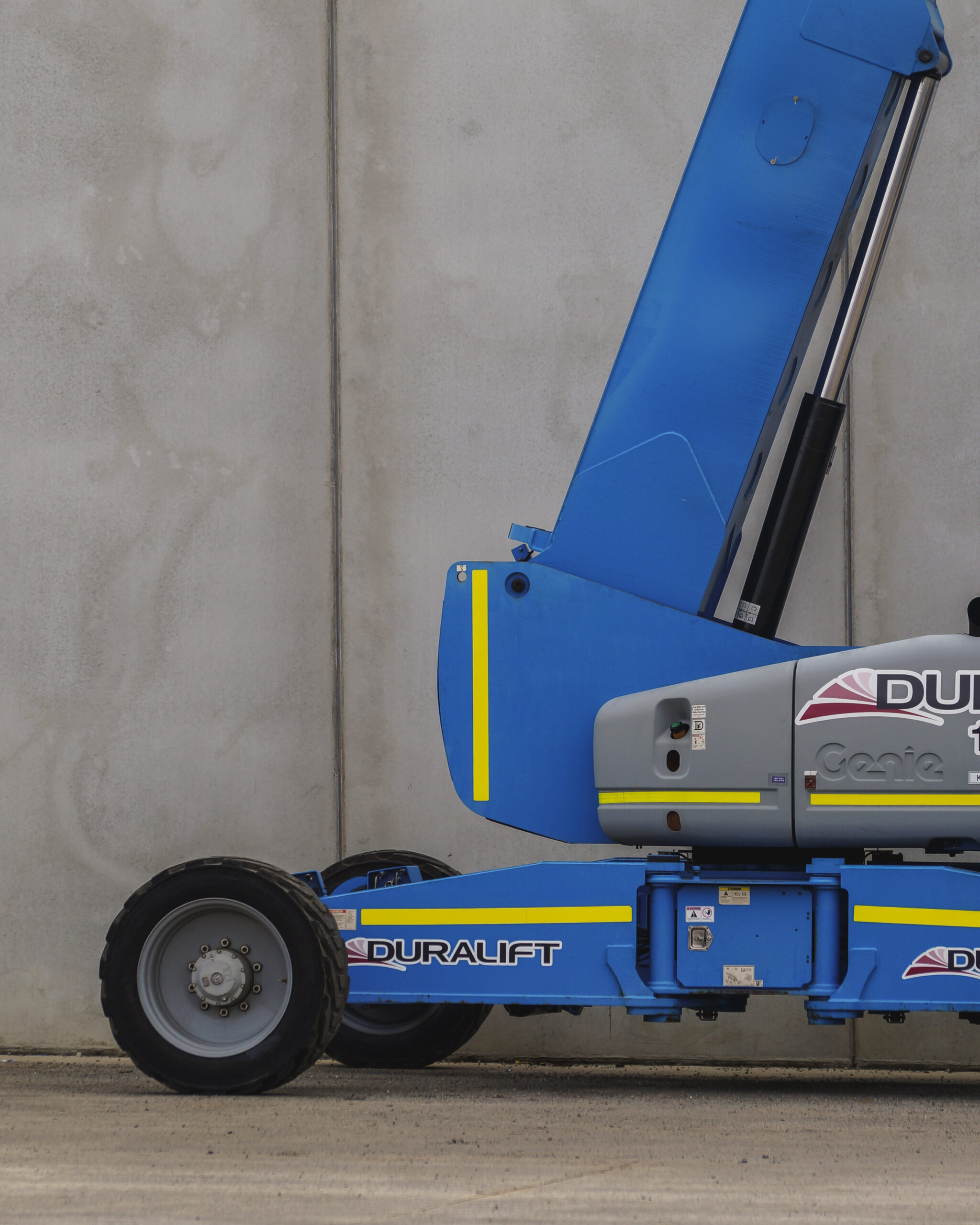

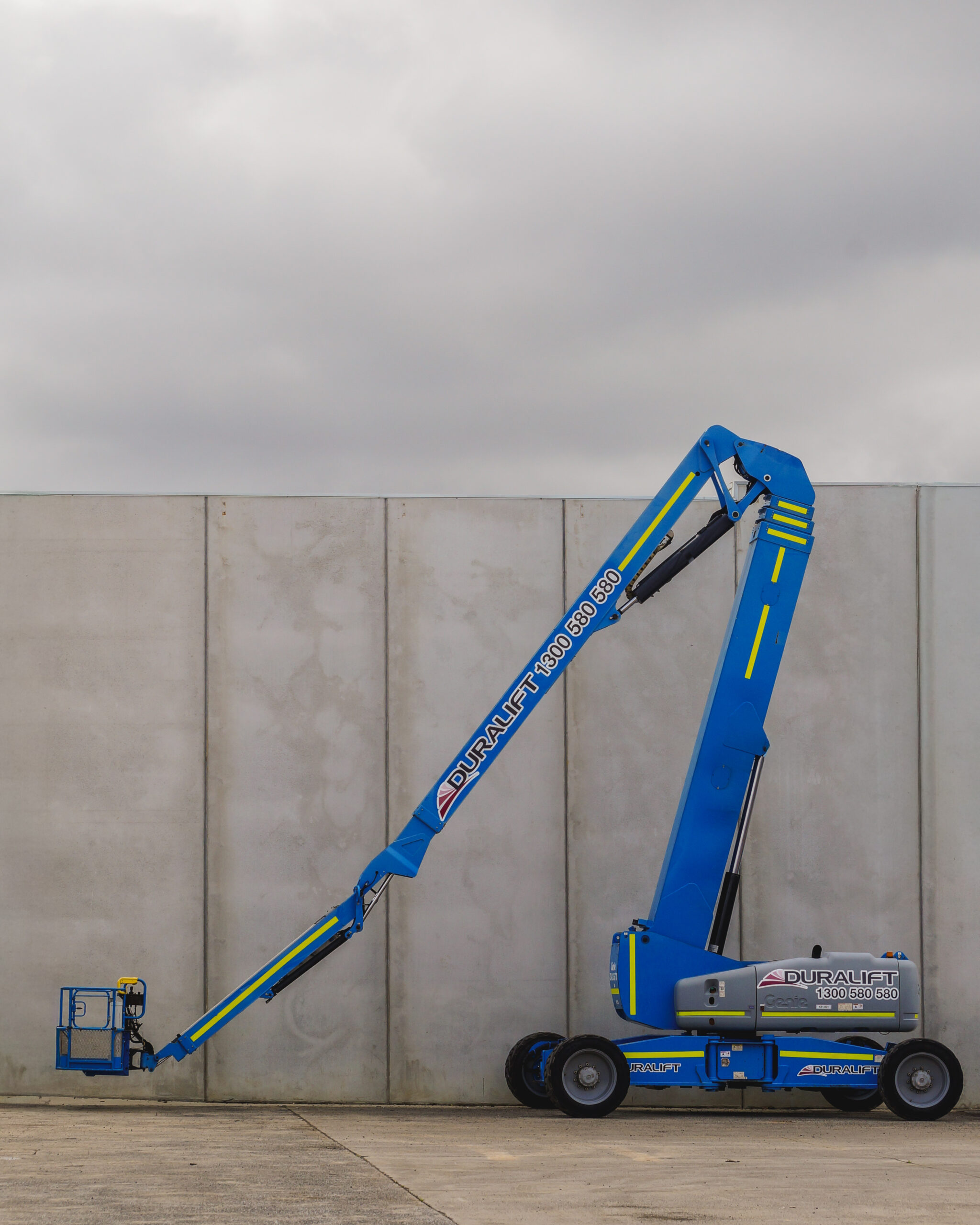

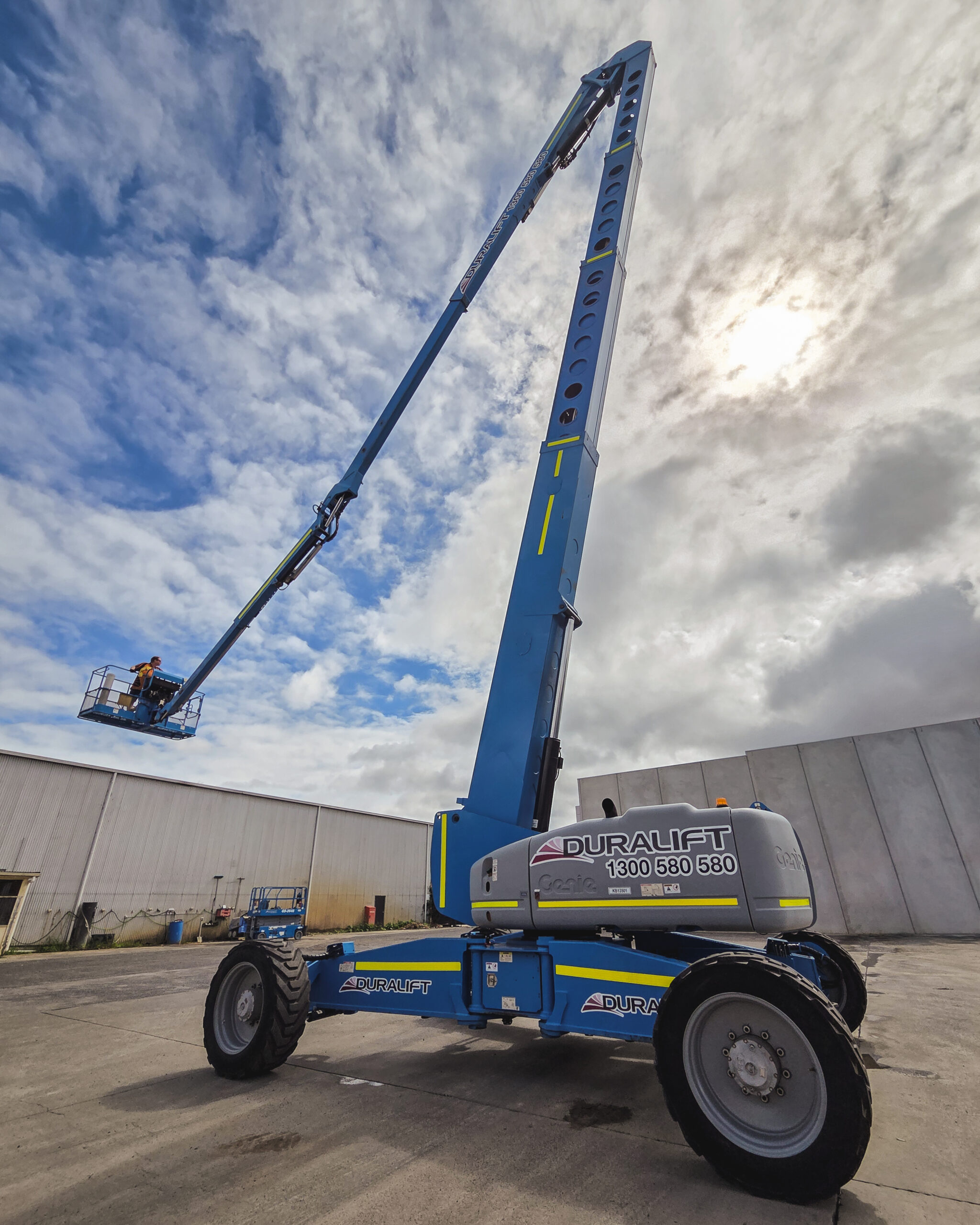

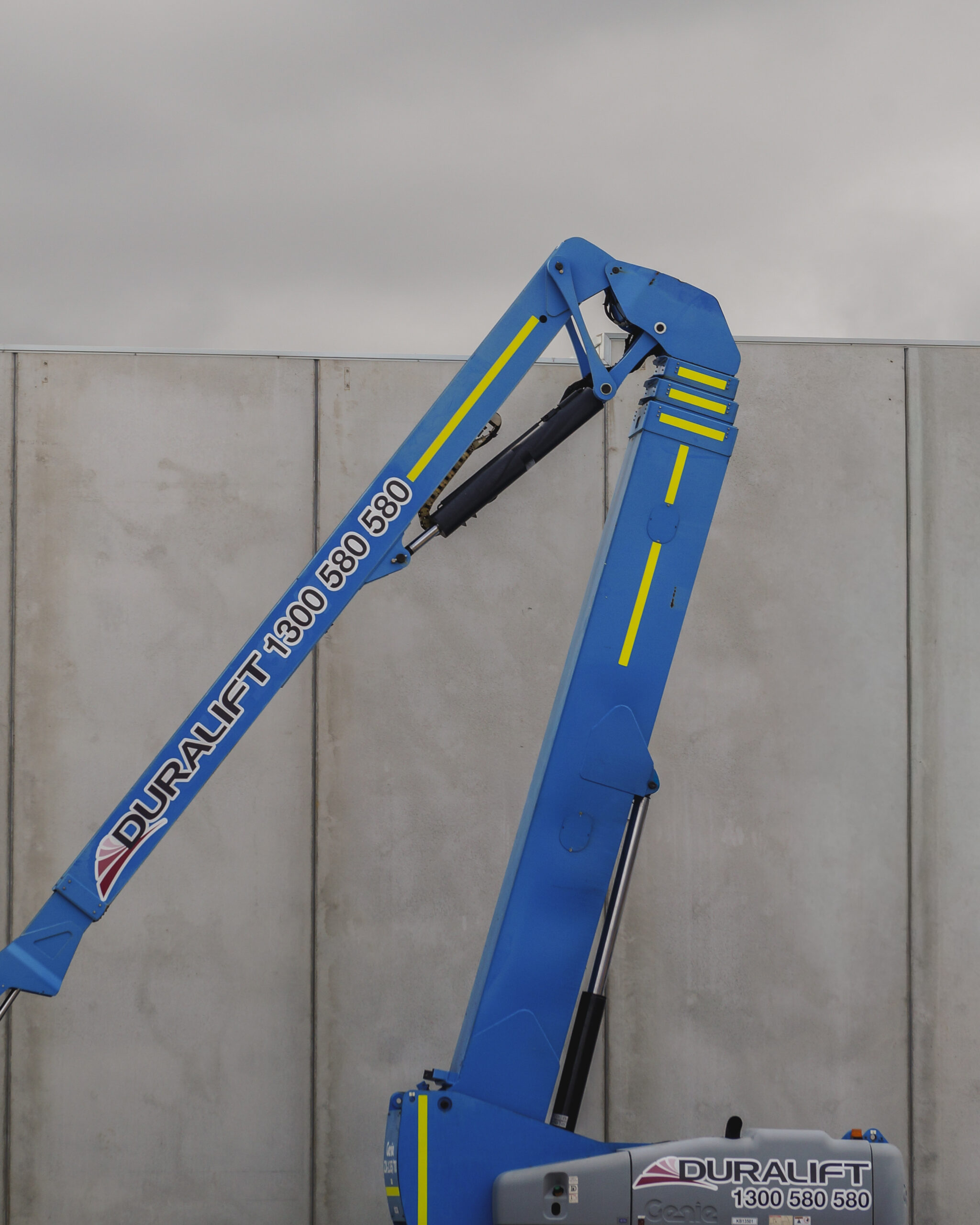

135FT DIESEL KNUCKLE BOOM LIFT

VIEW PRODUCT SPECS
  • 43.15m Working Height
  • 41.15m Platform Height
  • 2.49 – 3.94 m wide
  • 18.03 – 21.26 Horizontal reach
  • For outdoor use
135FT DIESEL KNUCKLE BOOM LIFT

This massive 135ft Knuckle Boom Lift has a whopping 43.15m working height and 18.03 – 21.26m horizontal reach. It has 4WD and steer, full proportional control and simultaneous boom functions for improved productivity. Continuous turn table rotation and 160 degree platform rotation provides flexibility in difficult access situations. The 272kg capacity platform comes with a load limiter and power cord to platform will support the most challenging working requirements.

Suitable for:

Construction, maintenance, signage & installation work and other tasks where you need to reach up as well as over or alternatively for direct elevated access

    QUICK QUOTE

    Hire Duration
    Daily RateWeekly RateBoth

    KEY MEASUREMENTS
    Working height max 43.15 m
    Platform height max 41.15 m
    Horizontal outreach max 18.03 m (riser extended), 21.26 m (riser retracted)
    Overall width 2.49 – 3.94 m
    Platform width x length 0.91 x 2.44 m or 0.76 x 1.83 m
    (depending on model)
    PRODUCTIVITY
    Lift capacity 272 kg
    Gradeability 45% (24.23°)
    Platform rotation angle 160°
    Jib angle – raise / lower 110°
    Slewing angle 360° Continuous
    MACHINE WEIGHT 21,092 kg
    • 43.15m massive working height
    • 18.03 – 21.26m horizontal reach
    • 45% gradeability (24.23°)
    • AC power cord to the platform
    • Ideal for outdoor use

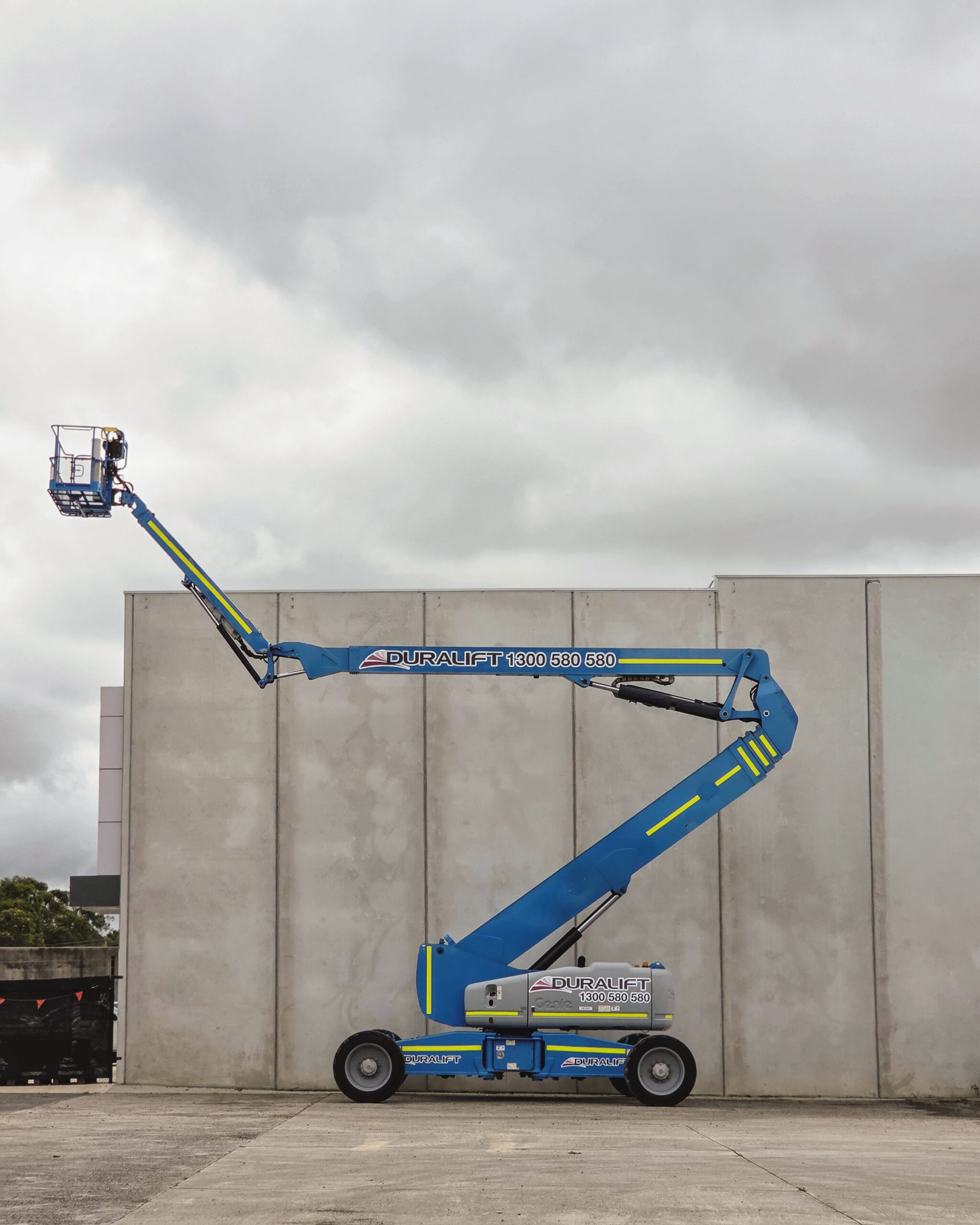

    Knuckle Booms are a type of elevated work platform (EWP) that allow the operator to not only reach upwards but also above obstacles that would be difficult to reach with any other type of access equipment. This up-and-over approach would provide access at difficult angles such as reaching over awnings, protruding areas of buildings, sheds, walls or other obstacles. Alternatively they can also be used for direct reach where you need extra height. Most Boom Lifts have weight limits around 230kg which would allow you to carry 2 people and equipment in the basket, with this machine allowing a slightly higher weight lifting capacity of 272kg. In-basket controls give you full positioning control to exactly where it is needed. They also have an AC power cord to the platform for power tools and welders while working at height.
