BOOM LIFTS

34ft Diesel Knuckle Boom

12.6m Working Height
10.6m Platform Height
1.85 m wide

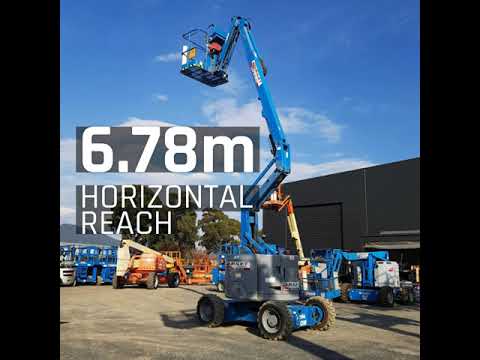

6.8m Horizontal reach
For outdoor use



View the Duralift 34ft Diesel Knuckle Boom video here

1300 580 580
KEY MEASUREMENTS
Working height max 12.62 m
Platform height max 10.62 m
Horizontal outreach max 6.78 m
Overall width 1.85 m
Platform width x length  1.42 m x 0.76 m
PRODUCTIVITY
Lift capacity 230 kg
Gradeability 45% (24.23°)
Platform rotation angle 130°
Slewing angle 355°
MACHINE WEIGHT 4854 kg

Several Brands and Models available ( Genie Z34/22IC , JLG 340AJ Articulating Boom Lifts )

  • 12.62 working height
  • 6.78m horizontal reach
  • Rough terrain tyres
  • 45% gradeability (24.23°)
  • Fire extinguisher
  • Ideal for outdoor use

Knuckle Booms are a type of elevated work platform (EWP) that allow the operator to not only reach upwards but also above obstacles that would be difficult to reach with any other type of access equipment. This up-and-over approach would provide access at difficult angles such as reaching over awnings, protruding areas of buildings, sheds, walls or other obstacles. Alternatively they can also be used for direct reach where you need extra height.

Most Boom Lifts have weight limits around 230kg which would allow you to carry 2 people and equipment in the basket. In-basket controls give you full positioning control to exactly where it is needed.

They also have an onboard generators that provide 240V AC power to the platform for power tools and welders while working at height.

Specifications: 34ft Diesel Knuckle Boom
DOWNLOAD
34ft Diesel Knuckle Boom Video
